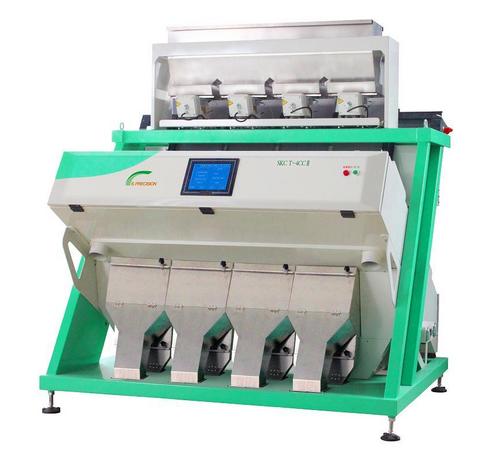

Raisin Color Sorter

Raisin Color Sorter
Raisin Color Sorter
Product Code : 03
Brand Name : S,precisison
Product Description

Raisin Color Sorter

We are color sorter manufacturer and supplier in China, providing various kinds of CCD colour sorting equipment for you to choose from. Our color sorter is one of our most popular products. We have successfully installed in demestic market ,The following are some characteristics of this product:

Color high resolution CCD image acquisition system

Thiscolor sorter uses color CCD image acquisition system to acquire the full information of red, green and blue color material, which can provide outstanding sorting effect and better serve customers' needs.

With the max. resolution up to 0.15mm, it can accurately detect the defects and spots of the raisins . Clear and accurate images can be achieved using high precision lens.

High speed image processing hardware system

DSP+FPGA hardware system is used for high-speed, timely data processing of massive information of color CCD image acquisition system.

Sophisticated intelligent software system

Intelligent algorithm created on the basis of color, shape, transmission and reflection is a combination of various modes, which can accurately respond to different information, assuring optimum processing.

High quality ejector

Our Sorting Machines adopts imported ejector for more effective material rejection and longer lifetime.

High rejection rate

We are using high resolution CCD image acquisition system, high speed software and hardware processing system, and high quality nozzle system help our color sorter achieve a high rejection rate.

Easy to clean, convenient to maintain

The specially-designed feeding system can run smoothly without jam.
The detachable component design greatly facilitates machine cleaning and maintenance.
Movable bin gate design makes it convenient to clean the materials adhered on the inner wall of the machine.

Ease of operation

Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and make the operation of our sorter easier.

Color Sorter Raisin  Technical Specifications

Technical Specifications

2R

3R

4R

5R

Product Name

 Color Sorter Raisin

 Color Sorter



 Color Sorter Raisin



Color Sorter

Configuration Level

High

High

High

High

Production Output (t/h)

0.5-2.5

1-3

1.5-4

2-5

Sorting Accuracy (%)

>99.9

>99.9

>99.9

>99.9

Rejection Rate (Defective Products: Good Products)

>5:1

>5:1

>5:1

>5:1

Total Weight

670

820

970

1120

Minimum Resolution (mm2)

0.04

0.04

0.04

0.04

Whole Power

2.4(0.9)

3.2(1.2)

3.6(1.5)

4.0(1.8)

Warranty

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

Outline Dimensions (L-W-H) mm

1320- 1500- 2253

1660- 1500- 2253

2020-1500- 2253

2360- 1500- 2253

Cooling Mode

Wind Cooling

Wind Cooling

Wind Cooling

Wind Cooling

Main Parts

2R

3R

4R

5R

Ejector

Italy

Italy

Italy

Italy

CCD Main Chip

Japan

Japan

Japan

Japan

Control Chip

USA

USA

USA

USA

Display Screen

Japan

Japan

Japan

Japan

Related Request

2R

3R

4R

5R

Voltage

220v/50hz

220v/50hz

220v/50hz

220v/50hz

Work Table Size)(mm-mm)

3000- 3320

3320-3320

3660- 3320

3980- 3320
