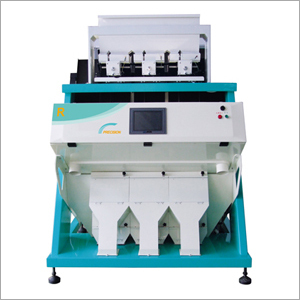

Pulses Color Sorter

Pulses Color Sorter
Pulses Color Sorter
Product Code : 01
Brand Name : S.Precison
Product Description

Coffee Beans /Dals/ Pulses Color Sorter

Our beans color sorter, also known as a pulse color sorter, is a type of CCD color sorter, having the following characteristics:

Color high-resolution CCD image acquisition system

Our Coffee beans color sorter uses color CCD image acquisition system, which can acquire full color information of red, green and blue material. This enables our sorter to better suit customers' requirements.
With a max. resolution of 0.15mm, it can accurately detect the small defects and spots of beans. The high precision lens helps ensure the image more clear and accurate.

Specialized image processing algorithm

Considering the complexity of beans, we use complicated regional classification method and realize material analysis and classification within the color gamut, so the accuracy of material identification is assured.

Unique feeding system

Due to its adjustable module design, the feeding system can accommodate various kinds of beans for a wider application range of beans colour sorter.
Special chute design ensures the uniformity of material flow, and thus, the best image acquisition and defective material rejection effects can be achieved.

Optional quality ejector
We are identified as one of the leading organizations, engaged in manufacturing and supplying Rice Color Sorter Machine. This machine is used to separate different granular materials from rice. Our diligent workforce uses quality grade materials and components to manufacture this machine. To provide the flawless range to clients, we check this machine on defined quality parameters. Also, we offer this Rice Color Sorter Machine at cost effective prices.

For materials of small grains, the imported high frequency ejector is more effective.
For materials of large grains, the imported large air flow high frequency ejector is more effective.

High rejection rate

High rejection rate is accomplished as a result of our high resolution CCD, unique feeding system, specialized algorithm and ejector.

Pulses Color Sorter Technical Specifications



Technical Specifications

2R

3R

4R

5R

Product Name

Beans Colour Sorter

Beans Color Sorter

Beans Color Sorter

Color Sorter

Configuration Level

High

High

High

High

Production Output (t/h)

1.0-3.5

2.0-4.5

3.0-5.0

4.0-5.5

Sorting Accuracy (%)

>99.99

>99.99

>99.99

>99.99

Rejection Rate (Defective Products: Good Products)

>5:1

>5:1

>5:1

>5:1

Total Weight

670

820

970

1120

Minimum Resolution (mm2)

0.04

0.04

0.04

0.04

Whole Power

2.4(0.9)

3.2(1.2)

3.6(1.5)

4.0(1.8)

Warranty

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

Outline Dimensions (LXWXH) mm

1320X1500X2253

1660X1500X2253

2020X1500X2253

2360X1500X2253

Cooling Mode

Wind Cooling

Wind Cooling

Wind Cooling

Wind Cooling

Main Parts

2R

3R

4R

5R

Ejector

Italy

Italy

Italy

Italy

CCD Main Chip

Japan

Japan

Japan

Japan

Control Chip

USA

USA

USA

USA

Display Screen

Japan

Japan

Japan

Japan

Related Request

2R

3R

4R

5R

Voltage

220v/50hz

220v/50hz

220v/50hz

220v/50hz

Equipment Reserve Size (mm)

Left, Right(325), Front, Back(350, 250)

Left, Right(325), Front, Back (350, 250)

Left, Right(325), Front, Back(350, 250)

Left, Right(325), Front, Back(350, 250)

Work Table Size (mmXmm)

3000X3200

3320X3320

3660X3320

3980X3320
