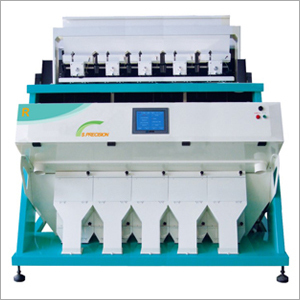

Cashew Color Sorter

Cashew Color Sorter
Cashew Color Sorter
Product Code : 04
Brand Name : S.Precision
Product Description
We have been setting benchmarks of success in the market as a famous company involved in manufacturing and supplying Cashew Color Sorter. Our offered machine is used to removal of impurities and increase the quality of grains. We use optimum quality materials and components to manufacture this machine. Customers can avail this Cashew Color Sorter from us in various technical specification according to their needs. We offer this machine at cost effective rates.

Our peanut color sorter, a type of CCD color sorter, is well proven in the peanut industry. It can greatly improve the quality of peanut by removing their contaminants. This color sorting machine has many technical characteristics, including

Color high-resolution CCD image acquisition system

The color CCD image acquisition system can acquire full color information of red, green and blue material, which enables our color sorter to better satisfy customers' demands.
With a max. resolution of 0.15mm, it can accurately detect the small defects and spots of peanut. Besides, image accuracy is ensured by high precision lens.

Special light source configuration

For special peanut varieties, special light sources can be configured to optimize the lighting of the materials, improve the contrast ratio of main characteristics and ensure the accuracy of material information acquisition.

Specialized image processing algorithm

According to the peanut characteristics of deterioration and budding, the algorithm is specially created on the basis of shape and color, which helps accurately identify the defective products.

Unique feeding system

Due to its adjustable module design, the feeding system can accommodate various kinds of peanut for a wider application range of peanut colour sorter.
Special chute design ensures the uniformity of material flow, and thus, the best image acquisition and defective material rejection effects can be achieved.

Quality high air flow ejector


With grain characteristic of peanut in mind, we introduce imported high air flow, high frequency ejector for accurate material rejection and long service life.

Superior rejection rate

Special lighting + high resolution color CCD + unique feeding system + specialized algorithm + specialized ejector = excellent rejection rate

Peanut Color Sorter Technical Specifications

Technical Specifications

2R

3R

4R

5R

Product Name

6SXZ-84 CCD Peanut Color Sorter

6SXZ-126 CCD Peanut Color Sorter

6SXZ- 168 CCD Peanut Color Sorter

6SXZ - 210 CCD Peanut Color Sorter

Configuration Level

High

High

High

High

Production Output (t/h)

0.8-1.5

1.5-3.0

2-4

2.5-5.5

Sorting Accuracy (%)

>99

>99

>99

>99

Rejection Rate (Defective Products: Good Products)

>5:1

>5:1

>5:1

>5:1

Total Weight

670

820

970

1120

Minimum Resolution (mm2)

0.04

0.04

0.04

0.04

Whole Power

2.4(0.9)

3.2(1.2)

3.6(1.5)

4.0(1.8)

Warranty

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

One Year (No Limit on the Hours)

Outline Dimensions (L-W-H) mm

1320-1500-2253

1660-1500-2253

2020-1500-2253

2360-1500-2253

Cooling Mode

Wind Cooling

Wind Cooling

Wind Cooling

Wind Cooling

Main Parts

2R

3R

4R

5R

Ejector

Italy

Italy

Italy

Italy

CCD Main Chip

Japan

Japan

Japan

Japan

Control Chip

USA

USA

USA

USA

Display Screen

Japan

Japan

Japan

Japan

Related Request

2R

3R

4R

5R

Voltage

220V/50Hz

220V/50Hz

220V/50Hz

220V/50Hz

Work Table Size)(mm-mm)

3000-3320

3320-3320

3660-3320

3980-3320
